Standard Equipment List- North Pacific 49 Euro Pilothouse

See Specifications for more info on equipment.

PDF for most current equipment list

Hull, Exterior & Fittings:

Solid, hand-laid fiberglass hull. Outer two layers are vinyl ester resin

Superstructure cored primarily with closed-cell foam – Rigid PVC squares where required

International Paints epoxy barrier coating below water line

International Paints Micron Extra 2 anti-fouling bottom paint OR Ultra 2 hard paint

#316L, polished stainless steel railings (1.5″ top rail) & stanchions bolted into aluminum backing plates

FRP no-skid deck on all deck surfaces

Aluminum sliding pilothouse exterior doors with SS threshold, lock & teak interior (2)

Stainless steel & glass 2-section aft salon door

SS heavy mooring cleats: (10) – 2 hawse cleats in cockpit, 2 at bow; 2 cleats midship, 1 on each side of salon;

2 cleats in aft corner of cockpit cap rails

SS fuel, water and waste tank deck fittings

Bonded hull windows with opening ports and porthole

Safety glass windows

Bonded glass house windows with Euro windshield & black framing

Emergency tiller

Zincs (5)

Extra gel coat (about 1qt)

Lines, fenders (6) and required coast guard safety equipment

Major Mechanical:

355hp Cummins diesel engine with 160 amp alternator, ZF85A transmission, Garmin Gateway
2-1/4″ stainless steel shaft – Aqua 22
Tides SureSeal dripless shaft seal, with spare lip seal
Johnson shaft bearings
Precision 4 blade propeller
Ultraflex 2 station hydraulic steering
FRP rudder platform & tube with stainless steel bearing
Cummins ETS (electronic throttle & shift) control module
Underwater exhaust system
Oil change pump for engine, transmission & generator
Engine room with 2″ sound insulation
Seafire automatic engine shutdown and automatic fire extinguisher with remote cable control
Aluminum non-skid plate floors – polished stainless steel engine mounts
6 – LED engine room lights

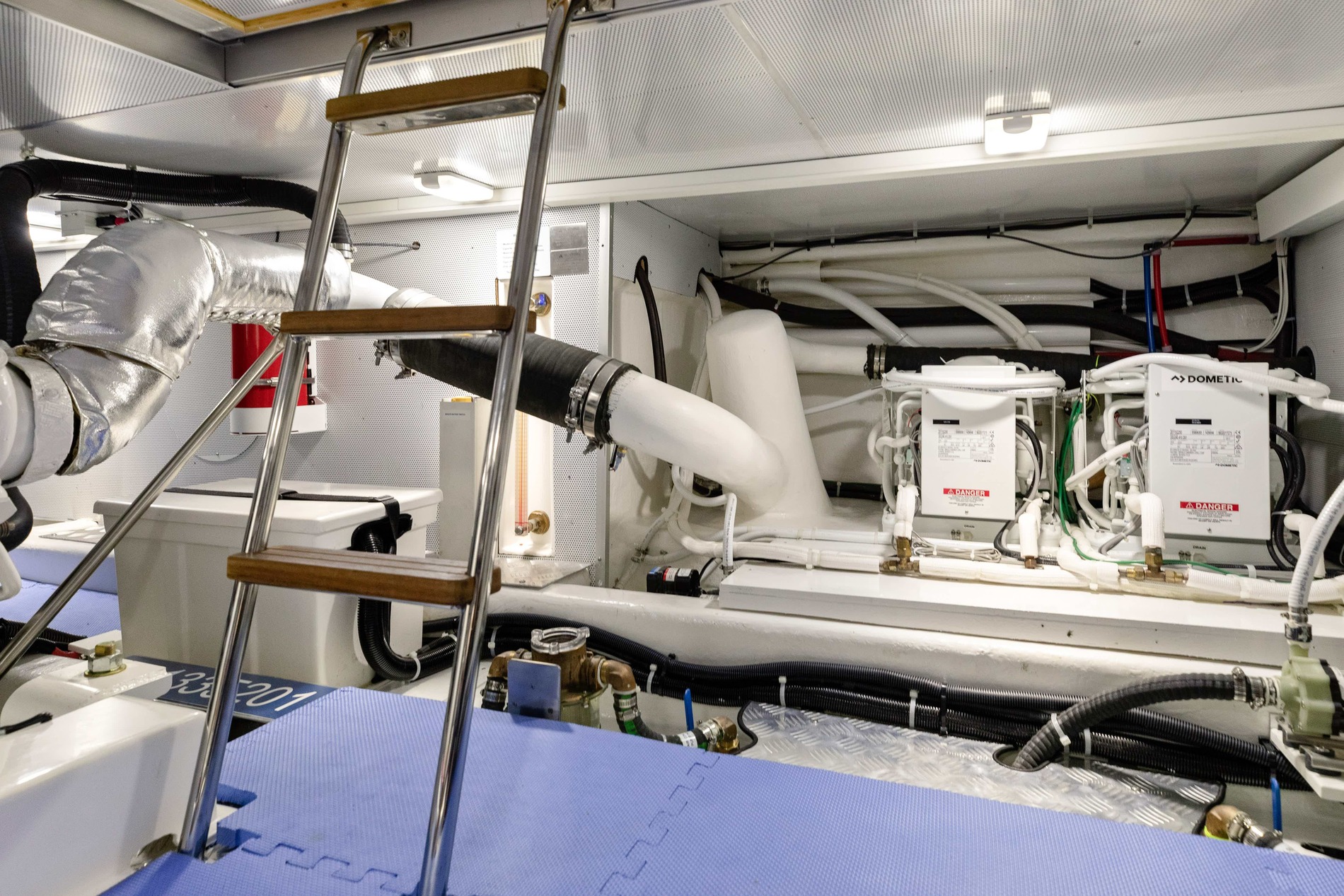

64,000 BTU of 240v Dometic CruiseAir air conditioning. Remote compressors in engine room. OR diesel hydronic heater with water
heating loop

Water Fuel & Holding Systems:

Seacock and strainer on engine raw water intake Dual Racor 900 fuel filters

Automatic bilge pump (3) – Rule or comparable brand Manual bilge pump (1)

Fiberglass fuel tanks; fuel lines for engine 1/2 ID; acrylic sight gauges with shutoff valves. 700 or 920 gallon total capacity Holding tank (65 GAL) w/ Whale black water diaphragm pump and Trident Premium sanitation hose

Whale sump pump for showers – 320IC

Whale 1815 sea water washdown pump

200 gallon fiberglass water tank – mounted forward under cabin sole – with deck mounted intake

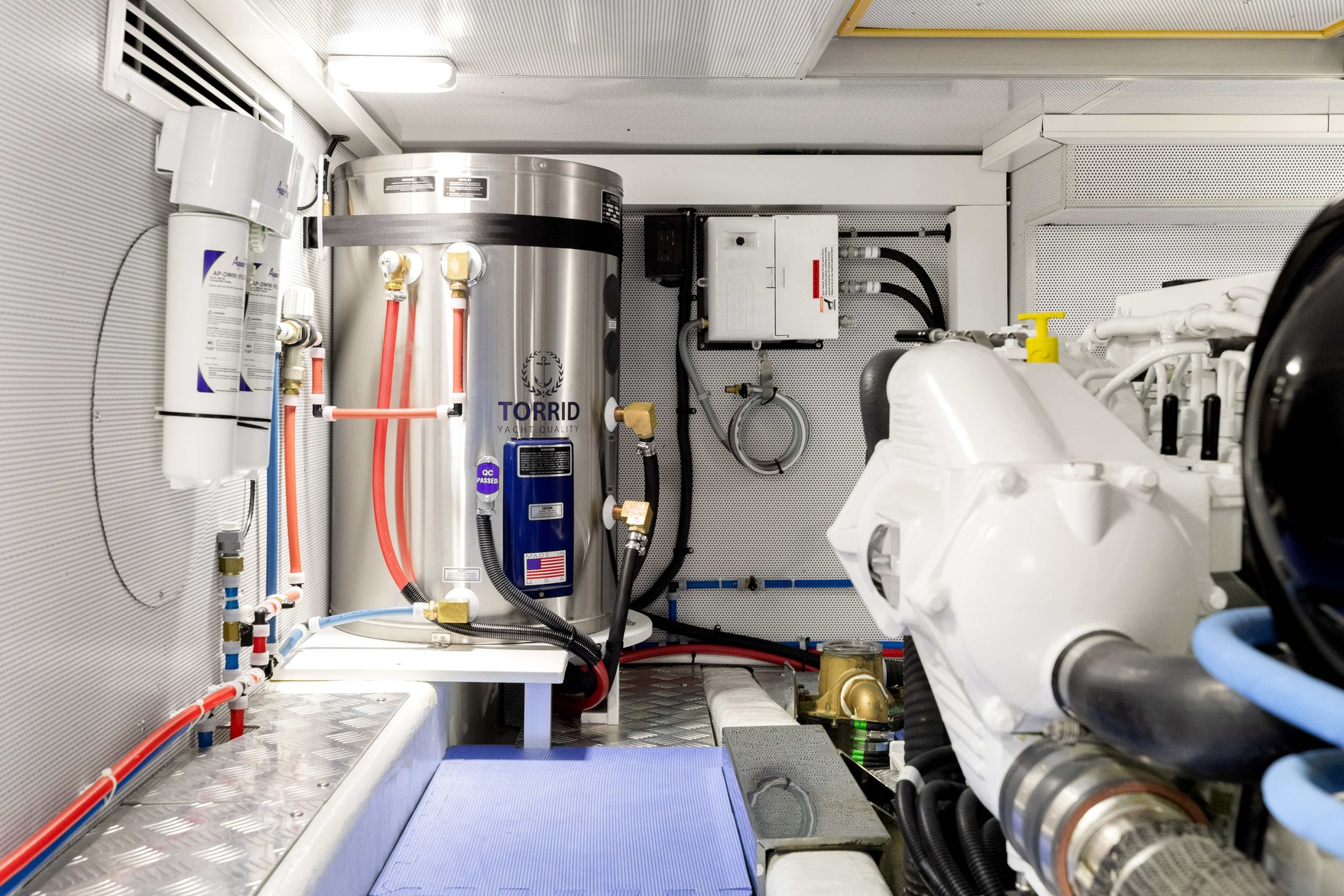

Fresh water system with Marco 16462415 variable speed pump and accumulator tank for quiet operation 20 gallon 120v water heater in engine room

Electrical:

6kw (west coast) OR 12kw (east coast) Northern Lights genset w/ sound shield and water/gas separator 120/240v Sleipner SE170 24v bow thruster

Maxwell RC12-10 24v windlass with capstan Hella LED navigation & stern lights

Seaview anchor & steaming light

KUS gauge & sensors for water & fuel tank level KUS black water sender wired to Cerbo GX control Engine room blower

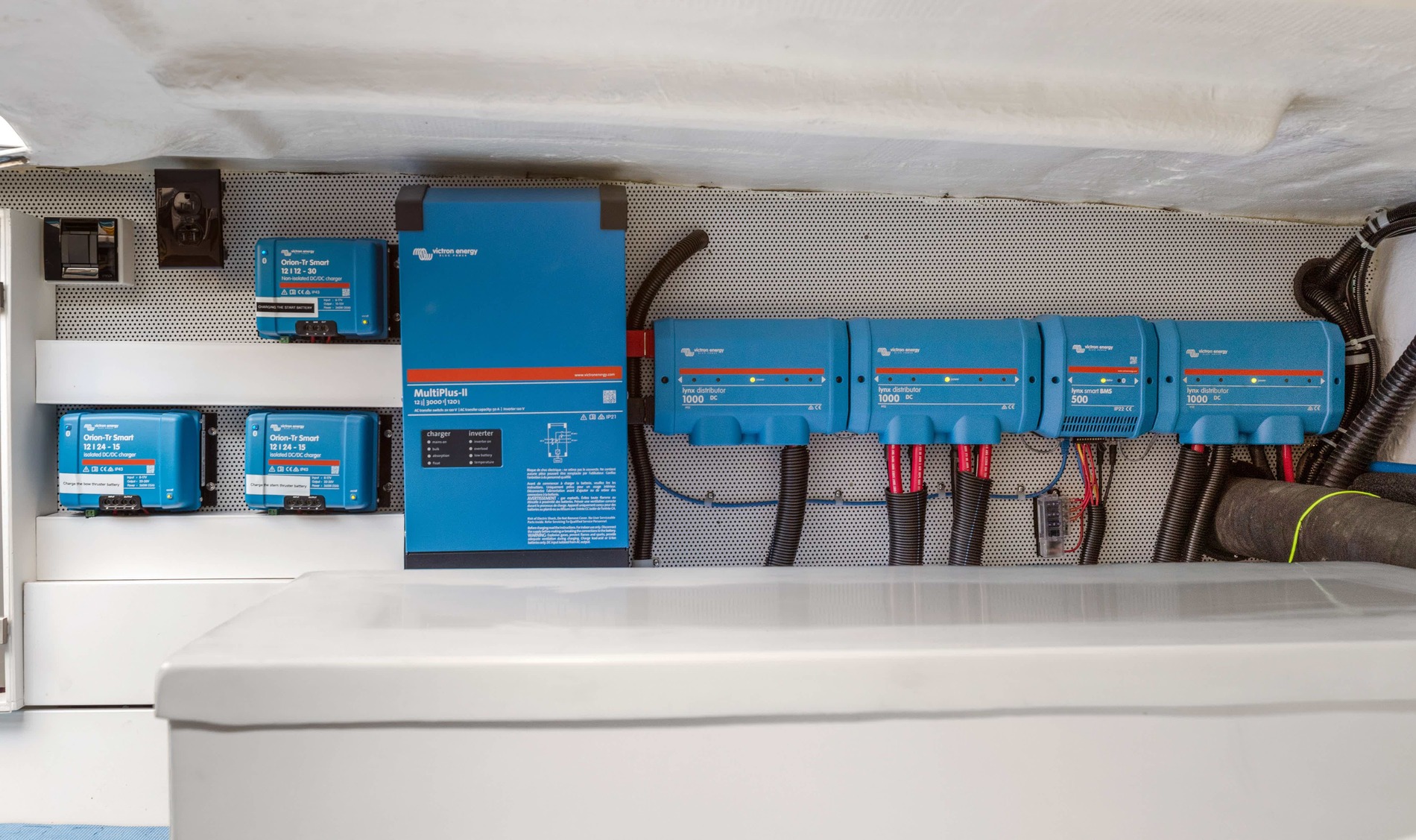

Batteries: 3 House – 12v/200Ah AGM batteries in box, 2 – Thruster/Windlass 12v/100Ah batteries in box, 1 – engine start, 1 generator Victron MultiPlus 3000 inverter/charger with remote Cerbo GX control with Touch 70 display & SmartShunt battery monitor; Victron Orion DC-DC chargers for thruster bank(s)

Bonded electrical system

50 amp 125/250v SmartPlug shore power connection, with ELCI, at the bow 50′ Glendinning retracting power cable at stern with ELCI

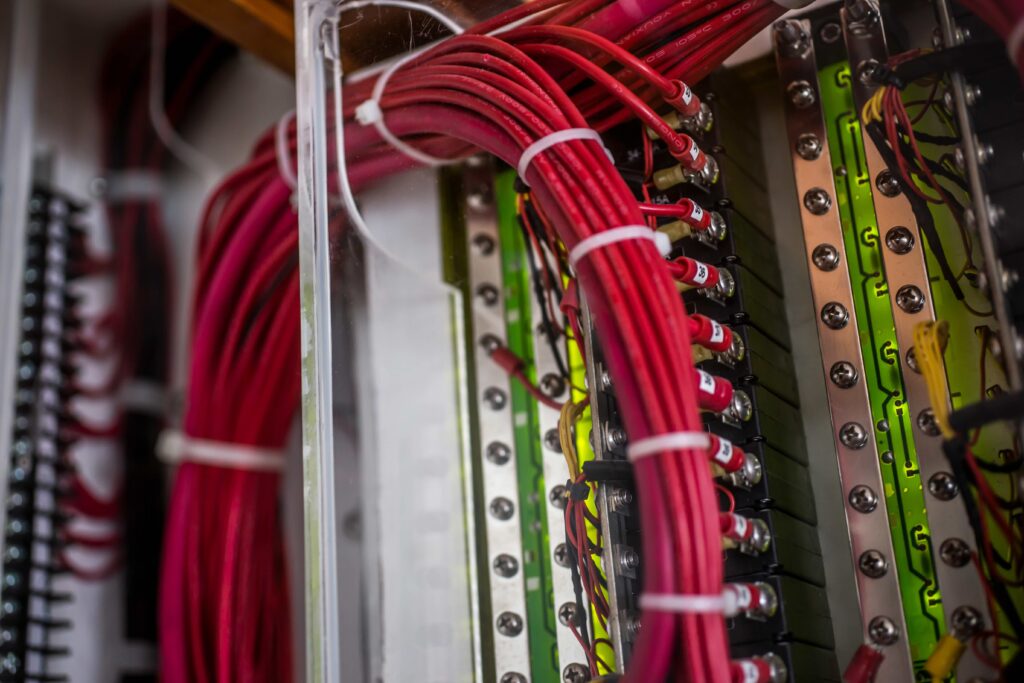

Master control panel (AC/DC circuit breakers) with Blue Sea magnetic relays for primary low voltage systems; and additional space for future upgrades

Additional empty wiring race to starboard, ER to forward of midship head, with pull string for future upgrades Engine room & lazarette light switches at entrances

12v LED ceiling & rope lighting throughout interior

12v LED courtesy lights throughout interior and exterior

Cat-6 Ethernet wiring prep from behind electrical panel to Fusion stereo, under radar array, under PH helm, Cerbo GX, all installed TVs Fusion MS-RA670 Stereo System – controllable through any MFD or smartphone; 2 Fusion FM-F65RW speakers each in the salon ceiling, pilothouse ceiling, on the flybridge arch.

Cockpit & Swim Platform:

LED Lighting in cockpit and on swim platform Hatch to access lazarette – gas assisted Stainless steel handrails on aft salon wall

Glass/stainless steel aft transom doors with SS threshold plates

Built-in cockpit seating with teak table forward and dual pedestals – forward facing OR reversible Flexiteek 2G deck on swim platform and cockpit floor

FRP bulwark gate doors on port and starboard side with SS threshold plates

Port swim platform locker with fresh/sea water wash-down outlet & notched door Starboard swim platform locker with Glendinning & notched door

Aft deck fresh water shower Sole drains (2)

Fully integrated swimming platform with flip-up cleats at outer corners Swim platform rub rail – around circumference

Swim ladder

Extra SS aft upper deck supports (2) SS lazarette ladder w/ teak steps

3 – LED lazarette lights

Fiberglass platform to mount steering mechanism Dripless rudder bearing

Stainless steel ladder leading to flybridge, starboard side

Flybridge:

Llebroc Series II helm seat (2) OR Llebroc double helm seat w/ 4″ aluminum pedestals Stainless steel steering wheel

Engine gauges

Cummins single lever ETS control Windlass control

Thruster control Helm compass

Hardtop with 4 dimmable overhead lights OR radar arch with 2 dimmable lights Flybridge windscreen

Fused 12V switches to control systems and lights on the flybridge Courtesy light (number as required)

D/C outlet (1)

GFI AC outlet on starboard side (1)

Seaview LED anchor/steaming combination light Hella NaviLED LED navigation lights

Hella NaviLED LED stern light – centerline mounted to aft boat deck edge Dual trumpet air horn

Stainless steel North Pacific Yachts nameplates (2) Stainless steel flag base

Stainless steel perimeter railings with aluminum backing plates Storage cabinet/propane locker on port side of helm seat

Boat deck drains, plumbed to the waterline (2)

Sunbrella-covered guest seating with SS/cushioned full beveled seatbacks & storage underneath Sunbrella canvas cover for helm seats, instrument console, all seating

FRP table and stainless steel stanchions Flexiteek 2G in seating area

UMT ECO-800 crane with power luff & manual rotation

Forward Walk-Around:

Courtesy lights

50amp 125/240v SmartPlug shorepower inlet with ELCI

Foredeck settee with moulded seat cushions, and Taco hinge fold-down seatback Sunbrella canvas seating cover

FRP bow pulpit with anchor guide, guide lines and rub strakes Rocna 40 (88#) anchor

280 ft. of 3/8″ high-test galvanized anchor chain Chain locker, divided in half, with SS drain tubes Stainless-steel windlass foot switch covers

Switched fresh & sea water wash-down with hose connector Large diameter stainless steel sampson post

Interior:

White oak, planked wood flooring throughout

Ash, wenge & black paneling and cabinetry throughout with 7+ coats of poly urethane for a smooth finish Ultraleather-wrapped handrails throughout

Square chrome push buttons on all cabinet doors & drawers Lacquered doors on select cabinets

Louvered doors on select cabinets

Dovetailed drawers with full extension slides – soft close in the galley Cedar lining in all hanging lockers

LED rope lighting near floor throughout Indirect LED ceiling rope lighting

Imtra Miami 80 polished square down lighting Window valances installed throughout boat Norman shade blinds throughout

Screens on all sliding windows

Soft vinyl headliners – attached with Velcro Select black lacquered ceiling features Laminated safety glass on sliding windows Ultra leather fabric for interior cushions

Salon & Dinette:

LED lights plus accent rope lighting; salon downlights are dimmable A/C outlets with USB-C

Reading lights CO detector

Large L-settee with coffee cabinet divider and room for a chair. Arm rests at both ends of the settee; beveled seatbacks; loose high low salon table.

Open cabinet/bookshelves (2) and cabinet with lacquered door (3) on forward wall Wenge wood stairs to pilothouse and to lower companionway

Starboard side 48″ HD LCD TV with under counter electric lift HDMI TV input jack – on outside wall opposite TV

Engine room hatches (2) with hinged/gas strut support for primary entrance

Galley:

LED downlighting throughout

Premium solid-surface countertop with raised edge along back Lacquered-finish cabinets above galley countertop

Other cabinets (2 closed, 1 open with shelves) Drawers in galley (10)

Ruvati RVH8310 galley sink – 30″ single bowl with rack, cutting board top and accessories Nickel finish faucet with pullout spout

3M water filter inline to galley with cold water supply Electric-lift small appliance corner

Convection microwave oven with outside vent Summit stainless steel 14.6 cu.ft fridge/freezer Electric cooktop

Oven

Master Stateroom - Midship Layout

A/C outlets with USB (2)

Queen island bed with hydraulic lift to access storage area below 5″ thick fabric covered foam mattress

Fabric headboard

Bed side cabinets with premium solid-surface countertop Outer edge counters with premium solid-surface countertop Large hanging lockers and other lockers

Samsung 32″ Frame TV CO detector

Large hull windows with opening ports (2) LED reading light (2)

Master Head:

LED downlighting & rope lighting throughout A/C outlet (1)

Tecma toilet with fresh water flush Mirror

Ceramic sink undermount and chrome faucet

Shower stall with premium solid-surface walls, floor, seat & shelf Ash finish accents

Exhaust fan

Tile mosaic accent wall & sink backsplash Shower control and nozzle

Opening frosted shower glass door with NP logo Premium solid-surface countertop

Opening, screened porthole windows (2) Trident Premium sewage hose

Towel racks and other hardware

Shower drains to automatic sump pump – Whale Gulper diaphragm pump 320IC

Guest Head:

LED downlighting & rope lighting throughout A/C outlet (1)

Tecma toilet with fresh water flush Mirror

Polished stainless steel ceiling

Ceramic undermount sink and chrome faucet

Shower stall with premium solid-surface walls, floor, seat & shelf Shower control and nozzle

Ash finish accents Exhaust fan

Tile mosaic accent wall & sink backsplash Opening frosted shower glass door with NP logo Premium solid-surface countertop

Opening, screened porthole window (2) Trident Premium sewage hose

Towel racks and other hardware

Shower drains to automatic sump pump – Whale Gulper diaphragm pump 320 IC

Pilothouse:

LED downlighting & rope lighting throughout A/C outlets with USB (2), DC outlet (1)

AC & DC electrical panels – Blue Sea Helm compass

Llebroc Series II helm seat OR Llebroc Series II double helm seat with NPY custom embroidery and 4″ aluminum pedestals

Dash area: Flat surfaces have premium solid-surface material – Galaxy Mist; raised dash area covered in black Ultraleather; between windows and above the helm is black lacquer-painted; window verticals & small forward ceiling above the helm covered with black Ultraleather

Cummins single lever ETS control Thruster control

Windlass control with AA150 chain counter Horn control

4″ Electric fuel and water gauges OR fuel & water level senders attached to Cerbo controller Analog engine gauges & Garmin Gateway connection for engine information on NMEA network Wenge steering wheel

Hella Defrost fan (2)

Intermittent windshield wipers (3) with EX210604 control Windshield washer (3)

Ceiling access panels for windshield wiper areas L shaped bench seat that converts into a bed Folding table at bench seat with SS support Storage cabinets and drawers

Reading light above bench seat (2)

Aft window and aft side windows opening and screened

Garmin Package:

Pilothouse:

(1) GPSMap 8612xsv multifunction display w/ fishfinder module

(1) GPSMap 8412 multifunction display

(1) GHC20 autopilot control

(1) VHF 215 radio

Flybridge:

(1) GPSMap 8612 multifunction display

(1) GHC20 autopilot control

(1) VHF 215 radio

Other Electronics:

GMR424XHD – radar antenna GMS10 network expander

Airmar B265LH fish finder transducer

Reactor corepack with Smart Pump (autopilot)

GC15 reverse image camera – mounted to hardtop looking aft

(2) VHF antenna AM/FM stereo antenna
