450 Pilothouse

Specifications

Specifications

We believe in offering a comprehensive package of high-quality equipment, fixtures and fittings throughout. This not only makes the order and commission process easier but also leads to a better ownership experience.

LOA45′ 8″
LWL41′4″
Beam13′8″
Draft4′6″
Displacement44,000#
Air draft17′ to top of hardtop (14′6″ with optional folding radar arch)
Fuel Capacity400 gallons in two tanks (700 gallons optional)
Fresh Water Capacity240 gallons
Holding tank Capacity65 gallons
Engine355hp Single Cummins QSB (up to 480hp optional) Twin engines also available
Cruise Speed7-10 kts
Top Speed11.5-14 kts

Range and Consumption Data - QSB Cummins 355hp

Engine:QSB Cummins 355hp
Fuel:Almost full
Water:Almost full
Vessel load:Loaded for cruising
Sea conditions:Calm
Fuel capacity (Gallons):700
Range includes a 10% reserve. The Cummins QSB is available up to 480hp. Higher hp ratings will result in higher top speed. Fuel burn below 10kts will be consistent with the 355hp engine.

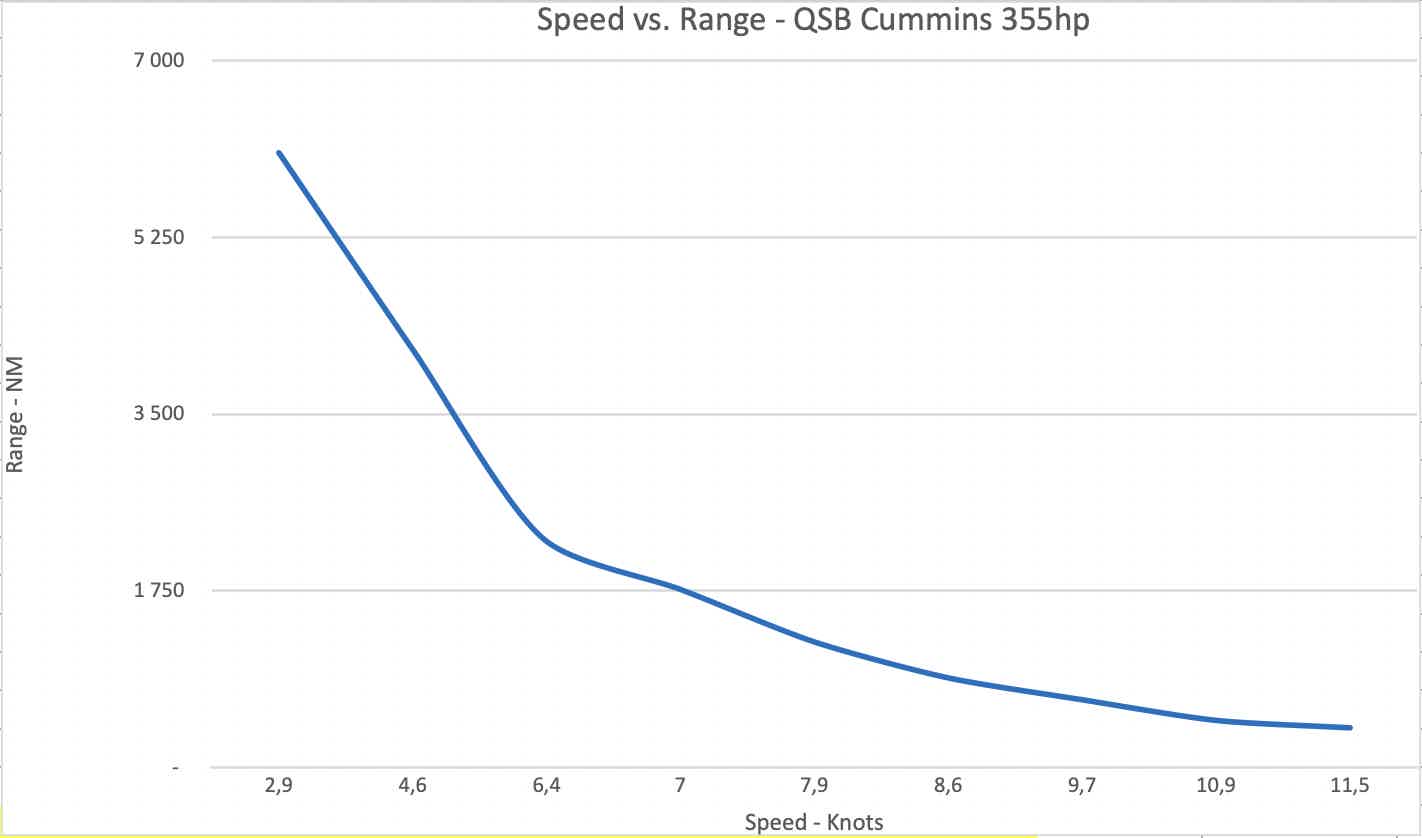

Speed vs. Range

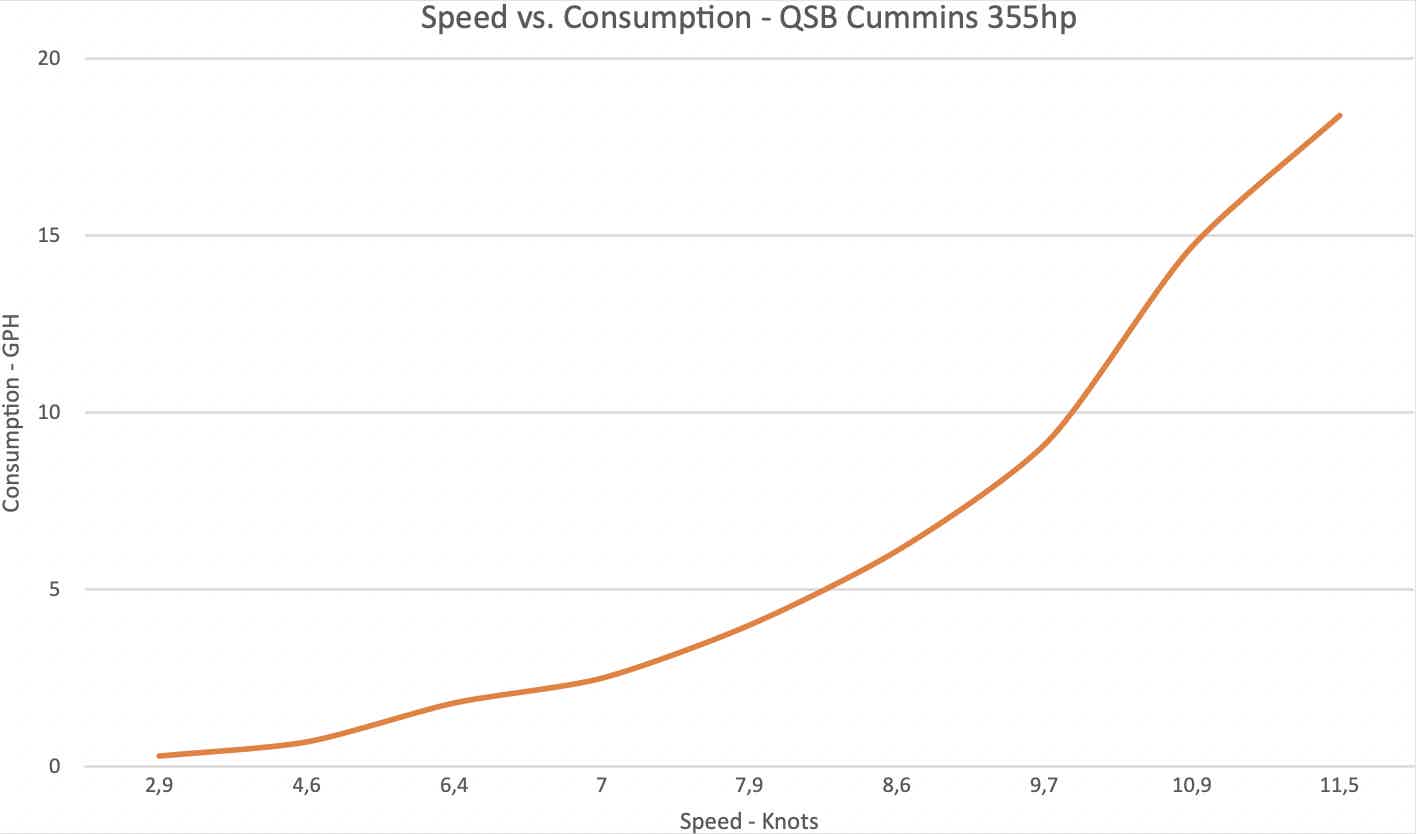

Speed vs. Consumption
