Cruising the North Pacific throughout the year demands a vessel capable of handling rapidly changing weather, unpredictable sea states, and the comforts needed for extended life aboard. Pilothouse yachts, sometimes called pilot house trawlers are engineered specifically to meet these demands. If you’re planning voyages that span sunny summer mornings, rainy autumn afternoons, and blustery winter nights, a pilothouse yacht could be the ideal long-range companion. Here’s a more detailed look at why a pilothouse yacht could be the ideal vessel.
At the core of a pilothouse yacht is its fully enclosed wheelhouse, typically positioned above the main deck for maximum visibility. This space is framed with reinforced stainless‐steel or anodized aluminum supports and large, tempered safety glass panels that often extend from knee height up to the overhead. Unlike an open flybridge or an aft cockpit helm, where wind, spray, and rain can limit operating windows, a pilothouse wheelhouse keeps you sheltered in virtually all conditions.
360° Visibility: The curvature and placement of the windows are engineered to minimize blind spots while reducing glare. Typically, you’ll find forward‐leaning windshields with built‐in wipers and defogging systems to clear moisture when fog or light rain rolls in. Side windows often include sliding panes or opening ports for ventilation when conditions permit.
Climate Control: Many modern designs integrate insulated bulkheads and double‐pane glass to retain heat or cool air. Standard HVAC packages often include diesel‐fired forced‐air heaters or hydronic heat coils for winter, and reverse‐cycle air‐conditioning units for summer. For boats cruising into subfreezing temperatures, an optional diesel furnace or electric radiant panels may be installed to prevent condensation and ice buildup on interior surfaces.
Ergonomic Helm Layout: Pilothouses are laid out so that all gauges, switches, and electronics sit at eye level or slightly below, reducing neck strain. Adjustable helm chairs with shock‐absorbing pedestals help soften the impact of rough passages, letting you maintain focus without fatigue.
One hallmark of pilothouse yachts is their displacement or semi‐displacement hull form. Rather than planning on top of the water like a high‐speed cruiser, these hulls push through the waves, which translates to predictable handling and significantly improved fuel economy at hull‐speed cruising.
A typical cruising pilothouse trawler might measure between 40 and 60 feet LOA, with a beam of 13–17 feet. The full‐displacement hull, often incorporating a fine entry at the bow and a broad, flared midsection, slices through chop while providing a stable platform for sleeping, cooking, and navigation. At displacement speeds—around 7–8 knots—diesel engines consuming 2–3 gallons per hour can deliver ranges upward of 1,500 nautical miles, depending on tank size.
Long‐range models often come with dedicated fuel tanks sized from 800 to 1,200 gallons—sometimes augmented by a centerline “drop” tank to extend range. Freshwater tanks in many pilothouse trawlers hold between 200 and 400 gallons, with optional water makers (commonly reverse‐osmosis systems) that produce 20–60 gallons per hour. This setup reduces the need to take on supplies frequently, allowing you to explore remote anchorages or open coastlines in Alaska and British Columbia without constant provisioning stops.
Many builders specify lightweight, high‐compression marine diesels—brands like Yanmar, Cummins, or Volvo Penta, paired with gearboxes optimized for low‐RPM cruising. A typical configuration might run at 1,800–2,000 RPM to achieve hull speed, reducing noise and vibration. Propeller shafts are often supported by robust struts and skegs that protect them in shallow waters or when beaching in tidal flats.

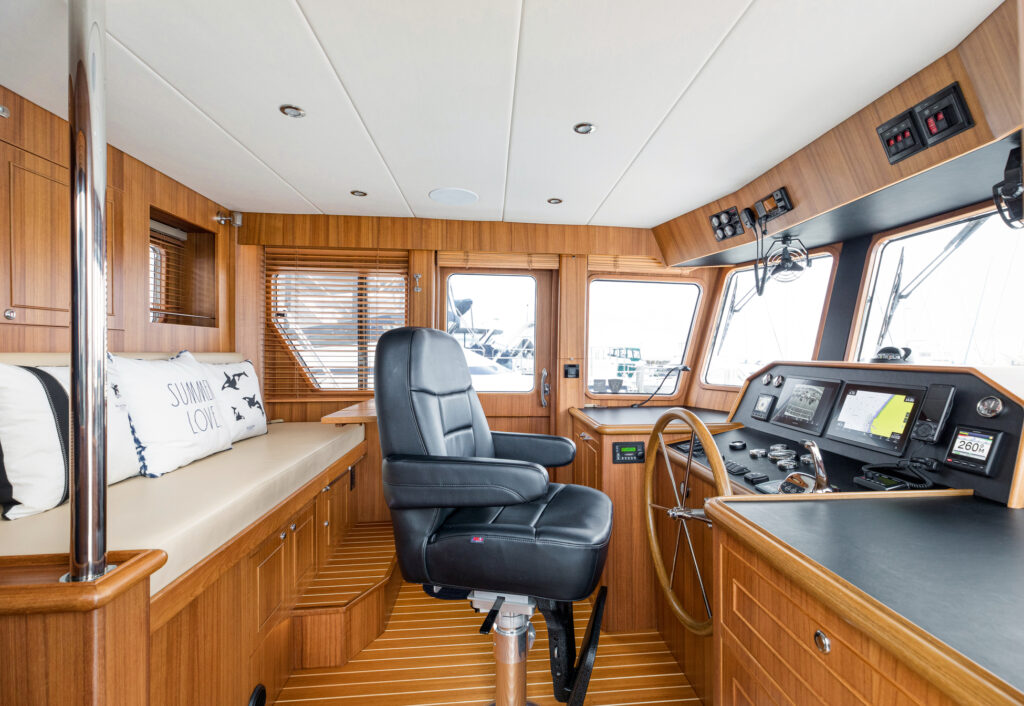

Safety is paramount when you’re miles from shore, and the pilothouse configuration places you in command within an environment designed for maximum situational awareness. The helm station is typically centered or slightly offset, with large multifunction displays (MFDs) mounted at eye level. These MFDs integrate radar, GPS chartplotter, AIS, sonar, and engine data, reducing the need to switch attention between multiple smaller devices. Throttle levers, autopilot controls, engine start-stops, and bow- or stern-thruster buttons are ergonomically positioned within easy reach, so you can make precise maneuvers without removing your hands from the steering wheel.
Wraparound windows often with low sills extend three sides of the pilothouse, offering an unobstructed 360° view. When fog drapes over the water at dawn, or a sudden rain squall envelops the vessel, you can rely on radar to detect distant buoys and vessels, while spacious windows let you visually confirm position and nearby traffic. Sliding side windows provide not only cross-ventilation on calm days but also the ability to verify mooring lines or communicate with deck crew without stepping outside. Overhead hatches or skylights introduce natural light below, reducing reliance on artificial illumination and giving the interior a more open feel.
Living aboard a pilothouse yacht through inclement weather or colder months requires careful attention to interior design, insulation, and systems layout. Most manufacturers emphasize “floating home” comforts without sacrificing seaworthiness.
Pilothouse vessels often feature a split‐level arrangement. Descend a few steps from the wheelhouse into the main salon, where full‐height ceilings (often 6’6″ or higher) and panoramic windows create an open atmosphere. Dinette settees are usually upholstered in marine‐grade fabrics or leather, with tables that convert to additional berths. After the salon lies the galley, frequently arranged in a U‐shape or straight‐line configuration to maximize counter space and secure storage.
On longer passages, a well‐equipped galley is essential. You’ll find gimbaled propane or alcohol stoves with safety shutoffs, top‐loading or front‐loading refrigerators/freezers (typically 12V compression units), and solid‐surface or Corian countertops. Drawers and cabinets are fitted with positive‐latching hardware to prevent items from shifting underway. A deep stainless‐steel sink with a high‐reach faucet, often plumbed to a separate filtered water tap, makes meal prep easier even in rough seas.
Below the galley, a centerline master stateroom typically includes an island berth with under‐bed storage, direct‐vent heating, and ensuite head access. Private guest cabins forward or a convertible dinette can accommodate two additional guests. All berths feature lee cloths or safety rails to prevent rolling out when at anchor or in a seaway. Overhead hatches and opening ports offer ventilation, while blackout curtains help maintain rest in varying daylight conditions.
Bulkheads and hulls are often insulated with closed‐cell foam or composite panels, minimizing condensation and heat loss. Forced‐air diesel furnaces distribute warmth through ducts in each cabin, while electric oil‐filled radiators can be used when at the dock. Boot‐stripe insulation tape and dehumidifiers help control moisture in damp climates.
Heads are fitted with marine toilets (either manual or electric), macerators, and sump pumps routed through properly seacocked seacocks. Showers often feature molded fiberglass pans with sufficient drain capacity to prevent pooling. Storage for toiletries and towels is located within reach, and mirrors are often anti‐fog coated. Hot water is generated by engine‐driven heat exchangers, supplemented by electric tank heaters when docked.
Year‐round cruising isn’t simply a matter of heading south for the winter; it means having a vessel that can withstand freezing temperatures, icing decks, and the wear that comes with continuous use.
Pilothouse yachts often include easy‐access engine room hatches—sometimes two hatches side by side—so you can reach sea strainers, raw water pumps, and heat exchangers without contorting yourself. Seacock handles are color‐coded and can be locked in either the open or closed position to prevent accidental closure. Draining drains for freshwater and raw water systems is simplified with specially routed plumbing lines that run within the protected interior bilge, reducing the chance of freeze damage. Optional insulation blankets for diesel engines help maintain efficient startup.
Non‐skid deck surfaces are often molded into the fiberglass or applied as aftermarket tape or paint to ensure traction when wet or icy. Heavy‐duty stainless‐steel handrails run the length of the decks and pilothouse roof, giving you secure handholds during tenders or when performing routine checks. Chafe protection pads at points of frequent contact—such as stanchions, cleats, and tow rails—are designed to withstand UV exposure and saltwater abrasion.
Bilge pumps both automatic and manual are placed in self‐bailing compartments to ensure redundancy if one system fails. Regular inspections of through‐hull fittings, hose clamps, and raw water strainers are simplified by removable engine room panels and labeled plumbing lines. Exterior hardware, such as ground tackle, windlass, and anchor chains, should be greased and checked for wear before venturing into colder regions where help may be days away.
Electrical and Electronics: Alternator output for battery banks—typically 12V or 24V systems—must be sized to handle longer periods at anchor when charging via solar panels or wind generators. Many owners add battery monitoring systems with shunt and display units in the pilothouse to track state of charge. Emergency backup navigation lights, horn systems, and secondary VHF radios (often handheld) are stored within reach of the helm for redundancy.
If your ideal cruise involves icy mist on the water at dawn, sideways rain showers in spring, or long passages with sparse marina infrastructure, a pilothouse yacht is much more than an aesthetic preference; it’s a practical necessity. You trade the exhilaration of an open‐air helm for the security of a dry, climate‐controlled station. You accept displacement cruising speeds typically 7–10 knots, in exchange for exceptional fuel efficiency and range, enabling you to reach anchorages that planing cruisers can’t. And you enjoy an interior designed for year‐round comfort, from well‐insulated bulkheads to full galley and head functionality.
Owners who’ve undertaken extended North Pacific voyages often cite the confidence born from that enclosed helm and the feeling that, regardless of how choppy or cold it gets outside, inside the pilothouse, “horizon” remains crystal clear. Whether you’re charting coastal Alaskan fjords in winter, chasing spring sunshine down Canada’s Inside Passage, or simply looping between Pacific Northwest ports, a well‐equipped pilothouse yacht provides the protection, efficiency, and livability you need for truly global, year‐round cruising. When the forecast turns foul, you’ll be grateful that your command station is sealed, heated, and outfitted for “all‐in” control—no matter what the sea throws at you.
We turn your cruising dreams into reality by developing bespoke trawler and pilothouse yachts built for comfort, safety, and performance. From the initial hull design to the final varnish, our experienced naval architects and craftsmen collaborate with you every step of the way, integrating fuel-efficient engines, ergonomic deck layouts, and beautifully appointed living spaces. With industry-leading warranties and personalized support, we make sure your new yacht feels like home the moment you step on deck. Reach out to us by email at info@northpacificyachts.com for personalized responses to all your inquiries. If you’d prefer a conversation, we invite you to give us a call at 1-877-564-9989.
